Ucpv 1500V.
High energy varistors.
Mainly used in the solar photovoltaic power generation DC junction box, the generated solar cell photovoltaic module surge or light is protected by lightning, so as to protect the solar photovoltaic module panel.
Used for surge protection of electrical components in any other DC circuit.
It is suitable for surge protection of DC power supply line equipment of solar power generation system.
Installed in parallel at the interface of LPZ1 zone and subsequent zones: power controller, power converter, etc.
When the surge arrester is installed under the required conditions, it does not require long-term maintenance, but only routine maintenance. If the color of the visible alarm window changes to red (fault) during use, it indicates that the surge protector is damaged and needs to be repaired or replaced.
Features:

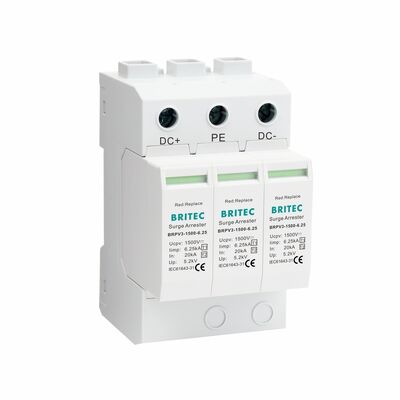

- Product Name: PV Surge Arrester
- Classification: Type 1 / Class I
- For Mounting On: 35mm Din Rail
- Temperature Range: -40°C to 80°C
- Insulation Material: Thermoplastic UL94-V0
- Ucpv: 1500V
- Provides reliable dc surge protection for photovoltaic systems
- Designed as a pv surge protection device to safeguard solar installations
- Effective pv lightning protection to prevent damage from electrical surges
Technical Parameters:
| Protection Degree |
IP20 |
| Transport |
By Air, By Sea Or Express |
| Module |
3 |
| Material |
Thermoplastic |
| Shipping Term |
TNT, DHL, FEDEX, EMS, UPS |
| Insulation Material |
Thermoplastic UL94-V0 |
| Warranty |
5 Years |
| Class |
Type 1+2 |
| Temperature Range |
-40°C - 80°C |
| For Mounting On |
35mm Din Rail |
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
DC (pv, solar) surge protection device.
Network surge protection device
LED Lighting Surge Protection
Britec Imp. & Exp. Wenzhou Co., Ltd. was established in 2003. Britec is a professional surge protective devices (SPD) manufacturer who design and manufacture surge protection devices for power protection, data protection, PV protection etc.
Britec owns in-house laboratory, the lab has 100kA 10/350µs lightning impulse generator, 25kA 10/350µs impulse generator and 120kA 8/20µs generator, 1.2/50µs 20kV combination generator, TOV test station and other test equipment.
The company carries ISO9001, ISO45001 , ISO14001 management system. Various products are TUV, CB CE, RoHS, certified.
Britec has long business relationship with European customers and well experience working with multi-national companies.
